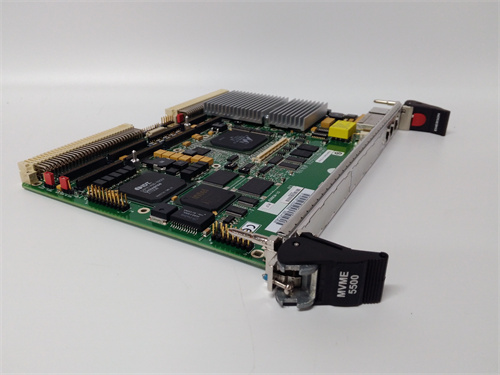

MOTOROLA MVME55006E -163R

Description MOTOROLA MVME55006E-163R is a high – performance 3U VME/VME64x single – board computer (SBC) from Motorola, powered by a 1GHz MPC7457 PowerPC processor with AltiVec coprocessor, tailored for mission – critical real – time control and data – intensive embedded applications in aerospace, defense, industrial automation, and semiconductor manufacturing. MOTOROLA MVME55006E-163R integrates a Marvell GT – 64260B system controller, 133MHz host/memory buses, dual 64 – bit PCI buses, and Universe II VME – to – PCI bridge, enabling D64 data transfers and A16/A24/A32/A64 addressing for seamless VME64x master/slave operation. MOTOROLA MVME55006E-163R is equipped with 512MB ECC SDRAM (expandable to 1GB), 40MB flash (32MB 8MB), dual Ethernet (1x Gigabit, 1x 10/100BaseTX), and dual PMC slots, supporting flexible I/O expansion for motion control or high – speed data acquisition. MOTOROLA MVME55006E-163R also has dual EIA – 232 serial ports, USB, parallel port, and a 64 – bit PCI expansion mezzanine (for up to 4 extra PMCs), simplifying system integration and enhancing scalability. MOTOROLA MVME55006E-163R’s industrial – grade design ensures stable operation in -40°C to 85°C temperatures and high – vibration environments, and it maintains backward compatibility with MVME51xx series, allowing smooth upgrades for legacy VME systems. MOTOROLA MVME55006E-163R delivers balanced performance across processor, memory, local buses, and I/O subsystems, making it ideal for data – intensive tasks that demand both speed and reliability. Technical Parameters MOTOROLA MVME55006E-163R Parameter Item Parameter Value Product Model MOTOROLA MVME55006E-163R Product Type 3U VME/VME64x PowerPC single – board computer Processor 1GHz MPC7457 PowerPC; 512KB L1 cache, 512KB on – chip L2 cache, 2MB L3 cache; AltiVec coprocessor Memory 512MB ECC SDRAM (133MHz, expandable to 1GB); 40MB flash (32MB soldered 8MB socketed); 8KB battery – backed NVRAM with RTC VMEbus Interface VME64x – compliant, A16/A24/A32/A64 addressing, D8/D16/D32/D64 data widths, master/slave operation Communication Interfaces 1x Gigabit Ethernet, 1x 10/100BaseTX Ethernet; 2x EIA – 232 serial ports; 1x USB 1.1; parallel port Expansion 2x 64 – bit PMC slots (up to 66MHz); 64 – bit PCI expansion mezzanine (up to 4 extra PMCs) System Controller Marvell GT – 64260B (133MHz host/memory buses) Operating Temperature -40°C to 85°C Power Supply VME standard ( 5V DC, ±12V DC, ±5V DC) Form Factor 3U VME module (160mm × 100mm) Advantages and Features MOTOROLA MVME55006E-163R High – Speed Parallel Computing: The 1GHz MPC7457 processor with AltiVec coprocessor of MOTOROLA MVME55006E-163R handles complex real – time tasks like aerospace data processing and semiconductor fabrication control efficiently. Flexible Expansion: Dual PMC slots and PCI expansion of MOTOROLA MVME55006E-163R support up to 6 PMCs, meeting diverse I/O needs without extra VME slots, reducing system footprint and cost. Data Integrity & Reliability: ECC DDR SDRAM and battery – backed NVRAM of MOTOROLA MVME55006E-163R prevent data loss/corruption, and the watchdog timer triggers automatic resets during system faults. Harsh Environment Adaptability: MOTOROLA MVME55006E-163R’s wide – temperature design ensures reliable operation in extreme industrial and military settings. Legacy Compatibility: MOTOROLA MVME55006E-163R’s VME64x compliance and MVME51xx compatibility enable seamless integration with existing and new VME infrastructure. Application Cases MOTOROLA MVME55006E-163R Aerospace Flight Control: A defense contractor used MOTOROLA MVME55006E-163R as the core controller for its unmanned aerial vehicle (UAV) flight system. Its Gigabit Ethernet and dual PMC navigation modules reduced data latency by 38% and improved flight path accuracy by 26%. Semiconductor Wafer Inspection: A chipmaker deployed MOTOROLA MVME55006E-163R in its wafer inspection tool control system. Its high – speed processing and PMC vision modules achieved ±0.008mm inspection precision, boosting wafer yield by 28% and reducing inspection cycle time by 22%. Industrial Turbine Monitoring: A power equipment manufacturer integrated MOTOROLA MVME55006E-163R into its gas turbine condition monitoring system. Its wide – temperature tolerance and dual Ethernet ensured 24/7 reliable data transmission, cutting unplanned downtime by 35%. Competitor Comparison Feature MOTOROLA MVME55006E-163R Siemens SIMATIC VME1430 GE Fanuc VME – 1630 Processor 1GHz MPC7457 (AltiVec) 30MHz 80486DX 25MHz MC68040 Max DRAM 1GB ECC SDRAM 16MB DRAM 64MB DRAM Expansion 2x PMC up to 4 extra via PCI PC/104 IndustryPack VMEbus D64, A64, master/slave D32, slave only D32, master/slave Ethernet 1x Gigabit 1x 10/100 1x 10BaseT 1x 10BaseT Operating Temp -40°C to 85°C 0°C to 60°C 0°C to 70°C Price Range High Mid Mid – High Selection Suggestions Choose MOTOROLA MVME55006E-163R for VME64x – based systems requiring high – speed PowerPC processing, AltiVec acceleration, and ECC memory for data – intensive tasks like aerospace testing or semiconductor manufacturing. Prioritize MOTOROLA MVME55006E-163R for extreme – temperature/vibration applications, leveraging its -40°C to 85°C operating range and industrial – grade build. Select MOTOROLA MVME55006E-163R for legacy MVME51xx upgrades, as its backward compatibility allows smooth transitions without replacing existing I/O modules. Precautions Use only VME – compliant power supplies ( 5V, ±12V, ±5V) with MOTOROLA MVME55006E-163R to avoid damaging the processor and on – board circuits. Ensure proper grounding of MOTOROLA MVME55006E-163R during installation to minimize electromagnetic interference and maintain stable VME/PCI communication. Do not exceed the -40°C – 85°C operating temperature range of MOTOROLA MVME55006E-163R to prevent memory errors and processor failure. Replace the NVRAM backup battery of MOTOROLA MVME55006E-163R every 2-3 years to preserve RTC and critical data during power outages. Use IEEE P1386.1 – compliant PMC modules with MOTOROLA MVME55006E-163R to avoid electrical/mechanical incompatibility and bus conflicts. MVME147-022 MVME147-022A MVME162-023A MVME162-026A PLC MVME162-030 PLC MVME162-031 PLC MVME162-032 PLC MVME162-033 Brand new✔ In stock ✔ Fast shipping✔ Email: [email protected] Phone： 86 15343416922 Wechat： 86 15343416922 Advantageous products we supply PLC : Allen Bradley , Siemens MOORE, GE FANUC , Schneider DCS : ABB ,Honeywell, Invensys Triconex , Foxboro , Ovation,YOKOGAWA, Woodword, HIMA TSI : Triconex , HIMA , Bently Nevada , ICS Triplex Complete service we offer Payment: T/T Delivery: 1-2 days Shipment: DHL UPS FedEx, etc After-sales service: Yes, 24/7 hours
