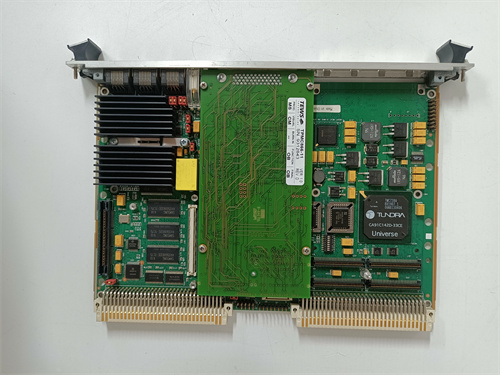

Motorola MVME5101-0131 | VMEbus Single Board Computer 500 MHz

Description Product Introduction VMEbus systems don’t die—they just need faster processors. The MVME5101-0131 drops into any standard VME chassis and brings a 500 MHz PowerPC 750 to the backplane. It’s a workhorse board for legacy industrial control, military, and telecom gear that needs more horsepower than the old 68K chips could deliver. The “0131” suffix tells you exactly what you’re getting: 500 MHz CPU, 256 MB SDRAM, and no mezzanine. In my experience, this is the sweet spot for most retrofits—enough memory to run VxWorks or Linux, but not so much that you’re paying for unused capacity. The board includes two Ethernet ports, two serial ports, and one PMC slot for expansion. Rock-solid, runs forever, but when they fail, finding a replacement gets harder every year. Key Technical Specifications Parameter Value Model MVME5101-0131 Brand Motorola / Emerson / Artesyn Series MVME5100 Product Type VMEbus Single Board Computer Processor PowerPC 750 (MPC750) @ 500 MHz L2 Cache 1 MB (backside) Memory 256 MB SDRAM (ECC) Flash 32 MB (boot flash) VMEbus Interface VME64 (master/slave) Ethernet 2 x 10/100Base-T (Intel 82559) Serial Ports 2 x RS-232/422 (16550 compatible) Expansion 1 x PMC slot (PCI mezzanine) Other I/O Parallel port, USB (optional), SCSI (optional on other models) Real-Time Clock Battery-backed Temperature Rating 0 °C to 55 °C operating (commercial) Form Factor 6U VME (single slot) Power Consumption ~15 W (typical) Operating Systems VxWorks, Linux, OS-9, others Firmware / Software Versions & Upgrade Notes The MVME5101 runs firmware (PPCBug) that initializes the hardware and boots the operating system. Firmware Version: Look for PPCBug 1.5 or later. Earlier versions had issues booting from CompactFlash adapters and some PMC cards. v1.5 added support for larger flash devices and fixed PCI enumeration bugs. Compatibility: Works with any VMEbus chassis and backplane Compatible with MVME5100 series PMC modules For VxWorks, you need the appropriate BSP (board support package) Configuration: Access PPCBug via serial terminal at power-up. Commands include: env show — display current environment set — change boot parameters probe — scan VMEbus and PCI devices boot — boot from specified device Upgrade Process: Firmware updates require a flash image file and either: A serial connection and XMODEM transfer, OR A bootable floppy/CD with the update utility Download the .bin file from Emerson/Artesyn (if available) Connect serial terminal at 9600 baud Use PPCBug commands to erase and reprogram flash Verify checksum and reboot Rollback: You can downgrade to earlier PPCBug versions if needed. Keep a backup of the original image before upgrading. Compatibility & Replacement Matrix Use this when maintaining or upgrading VMEbus systems. Original Model Replacement Model Compatibility Level Key Notes MVME5101-0131 MVME5101-0131 Drop-in Identical part. Direct replacement. MVME5101-0131 MVME5100-0131 Drop-in MVME5100 is the base model. The -0131 suffix is the same configuration (500 MHz, 256 MB). Direct replacement. MVME5101-0131 MVME5500-0161 Needs Adaptation MVME5500 is a newer generation (7455 CPU). Faster, more memory, but VMEbus compatible. May require OS/BSP updates. MVME5101-0131 MVME2600 Incompatible MVME2600 is a much older 68K-based board. Won’t run PowerPC code. MVME5101-0131 Third-party VME SBC Needs Adaptation Possible, but requires driver/BSP development and testing. Not a drop-in. BC810 PLC BC810K01 PLC BC810K02 I/O BI913S PLC BI914S PLC BI923S PLC BI924S PLC BI933S BI934S PLC BP910S PLC Email: [email protected] Phone: 86 15340683922 Sales:Wu Jiedong Our products are guaranteed for 1 year, with new and original production stopped and imported spare parts. All prices listed on the official website are subject to confirmation by contact: Wu Jiedong (manager). Our product: brand new original packaging Our warranty: All new or repaired parts have a 12 month warranty period beginning Our payment: 100% telegraphic transfer of inventory items before shipment, conditions can be proposed! If you have any downtime spare parts that you cannot find, please feel free to call or use email to contact me. If there are issues that the product cannot solve, please contact me. Product prices can be negotiated. Please do not consider contacting me!
