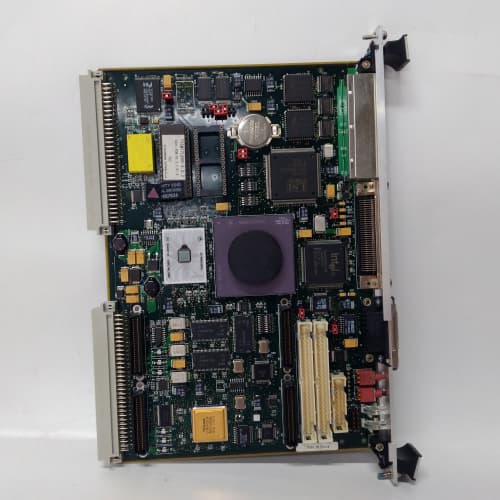

MOTOROLA VME172PA-652SE | VMEbus CPU Board, 68060, 10/100 Ethernet

Description Key Technical Specifications Parameter Value Model MOTOROLA VME172PA-652SE Form Factor 6U VMEbus CPU Motorola MC68060 (50 MHz or 66 MHz, check variant) RAM 32 MB (on-board) Flash Memory 8-64 MB (depending on configuration) Ethernet 1 x 10/100Base-TX (front panel) Serial Ports 2 x RS-232 (front panel) Other I/O Parallel port, SCSI (optional) VME Interface Master/Slave, A32/D32 Real-Time Clock Yes, with battery backup Operating System Support VxWorks, pSOS, OS-9 Operating Temp 0°C to 65°C Power Consumption Approx. 10-15 W Condition New Surplus, professionally tested   Product Introduction The MOTOROLA VME172PA-652SE is a legacy but highly respected 6U VMEbus single board computer built around the Motorola 68060 CPU. For decades, these boards were the workhorses in embedded systems across defense, aerospace, industrial automation, and telecommunications. If you are maintaining a long-lifecycle system—think flight simulators, radar systems, or specialized industrial controllers—you know this board. It integrates the CPU, memory, and basic I/O (Ethernet, serial) onto a single VME card. The “652SE” suffix indicates a specific build variant with defined memory and feature set. These boards are long out of production by Motorola (later Emerson), making them increasingly difficult to source. The units we have are new old stock (NOS), meaning they are unused and still in their original protective packaging. Each board undergoes a basic power-on and functional verification before shipping to ensure it isn’t a DOA.   Frequently Asked Questions (FAQ) Q: What operating systems will run on this board? A: Historically, the VME172 was a target for real-time operating systems like VxWorks (most common), pSOS, and OS-9. It can also run a bare-metal executive. You will need the specific board support package (BSP) for your OS, which typically includes drivers for the on-board devices (Ethernet, serial, VME interface). If you are replacing a board in an existing system, you must ensure the new board has the same memory map and firmware version, or your OS may not boot. Honestly, getting the exact firmware revision match is the most critical part of a swap. Q: Can I use this board in a standard VME64 chassis? A: Yes. The VME172PA-652SE is a 6U VME board and is compatible with standard VME64 backplanes. It supports A32/D32 addressing and can act as both a VME master and a slave. It will work in older VME chassis as well as newer ones, provided the power supply can handle the load. Q: I’m replacing a VME172 board. How do I ensure the firmware matches? A: Excellent question. The firmware (also called the “boot monitor” or “PROM”) is critical. When the board powers up, it runs this firmware to initialize the hardware and boot the OS. The OS kernel often relies on specific addresses and functions provided by this firmware. If your new board has a different firmware version, the OS may crash on startup. The only way to be sure is to read the firmware version label on the old board’s PROMs, or boot the old board and type a command at the monitor prompt (usually version). We can often provide boards with the firmware revision you specify if we have it in stock. Q: Does this board have a battery for the clock and maybe SRAM? A: Yes. There is a lithium battery on the board that maintains the real-time clock and can also preserve the contents of any battery-backed SRAM. These batteries are old and likely near the end of their life on new old stock boards. We recommend checking the voltage or proactively replacing the battery before relying on it to keep time or data. A dead battery won’t stop the board from running, but you’ll lose the time/date at power-down. Q: Is this board RoHS compliant? A: Probably not. This board was manufactured long before RoHS (Restriction of Hazardous Substances) came into full effect in 2006. It contains lead solder and other materials that are now restricted. This is generally not an issue for industrial and military applications which often have exemptions or are not required to comply with RoHS. If you are shipping equipment into a region with strict RoHS enforcement, you need to verify your exemption status. HIMA F3406a (17.049) PLC HIMA F3410 (17.062) DCS HIMA F3417A PLC HIMA F3417a (17.034) PLC HIMA F4101 (17.003) I/O HIMA F4102 HIMA F4102 PLC HIMA F4110 (17.058) PLC HIMA F4304 (17.026) PLC Email: [email protected] Phone: 86 15340683922 Sales:Wu Jiedong Our products are guaranteed for 1 year, with new and original production stopped and imported spare parts. All prices listed on the official website are subject to confirmation by contact: Wu Jiedong (manager). Our product: brand new original packaging Our warranty: All new or repaired parts have a 12 month warranty period beginning Our payment: 100% telegraphic transfer of inventory items before shipment, conditions can be proposed! If you have any downtime spare parts that you cannot find, please feel free to call or use email to contact me. If there are issues that the product cannot solve, please contact me. Product prices can be negotiated. Please do not consider contacting me!
