433MHz Wireless Remote Control, DC 12V single channel Relay Receiver RF Switch COM34, R24

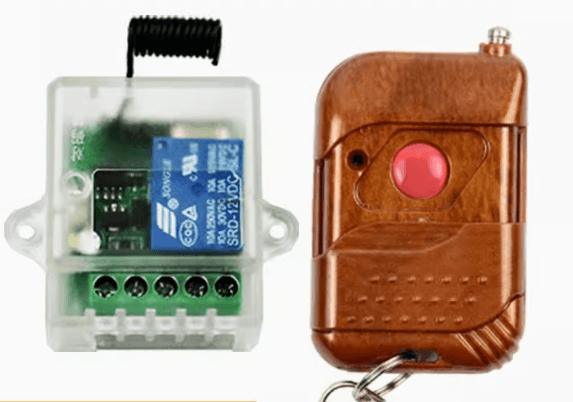

DescriptionThis is a universal fashion 433MHz  Wireless Remote Control which is powered by DC 12V , it is used to wiresely activate a single channel Relay through an  RF Receiver circuit.  The transmitter is a one Button Remote Control for Gate  Openers and other various telemetry applications.Specifications Of The TransmitterModel Number: KT11-4.Materials: ABS.Channel: One Channel.Frequency: 433 MHz.Modulation System: ASK.Match Code Way: Fixed Code.Working Voltage: DC 12V.Working Current: <25mA.Working RF Frequency: 433MHZ.Transmitting Power: 13dbm.Remote Control Distance: 50m (Please notice that the 100m distance is the ideal distance without any block and signal interfere. It would rise and fall about 10%-50% with the block and signal interference).Color: Brown.Package Size: 6.8 * 3.5 * 1.5cm / 2.67 * 1.37 * 0.59in.Package Weight: 28g/1.0oz.Specifications Of The ReceiverModel Number: KR1201B-4.Modulation Mode: ASK.Working Mode: Momentary, Toggle, Latching and Time Delay Mode.Input Voltage: DC 10 ~ 14V.RF Frequency: 433MHz.Quiescent Current: 5mA .Receiving Sensitivity: >97dbm.Remote Control Range: >100m (Free Space).Wired Connection Way: Fixed Wiring Pillar.Decoding Mode: MCU Software Decoding.Working Mode: Momentary, Toggle, Interlocked Mode Latching Time delay (5s ,10s ,15s ).Wiring Diagram 1: V: 12V (Input).– V:  12V – (Input).NO: Normal Open(Output).COM: Common(Output).NC: Normal Close(Output).Color: Green (PCB Board), Black(Outside Shell) .Package Size: 3.9 * 3.5 * 2.5cm / 1.53 * 1.18 * 0.98in.Package Weight: 35g / 1.23oz.Circuits Package includes: 1×KR1201B-4 433MHz DC 12V 1 Relay Receiver Module 1×1 Channel RF Wireless Remote Control
