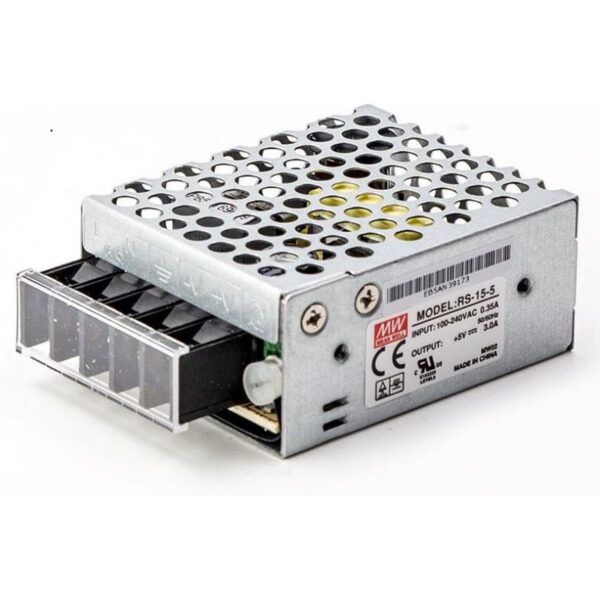

RS-15-5 Mean Well SMPS – 5V 3A – 15W Metal Power Supply

Key Specifications: Output Voltage          5V  Type                         Enclosed Type  Approx. Wattage 15W  Features                 Standard  Series                 G3(Reliable)  Mechanical Form Enclosed  Warranty                 3 Years Warranty  IP Level                 Non-Waterproof  Input Voltage         100-240V auto-select  Features:- No load power consumption <0.5W All using 105?C long life electrolytic capacitors Protections: Short circuit / Overload / Over voltage / Over Temp. Meet EMS EN50082-2/EN61000-6-2 heavy industry level (35~150W) Withstand 300VAC surge input for 5 sec. High operating temperature up to 70?C Withstand 5G vibration test Miniature size, high power density High efficiency, long life, and high reliability LED indicator for power on 100% full load burn-in test Suitable for critical applications 3 years warranty Specifications:- AC input voltage range 85~264VAC, 120~370VDC AC inrush current Cold start, 65A at 230VAC DC adjustment range ?10% by potentiometer for single output; CH1 -5%~ 10% by potentiometer for multiple output Overload protection >105%, hiccup mode Over voltage protection 115%~135%, shut off Withstand voltage I/P – O/P: 3kVAC, I/P – FG: 1.5kVAC, O/P – FG: 0.5kVAC, 1 minute Working temperature -20~ 70?C Vibration 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes Safety standards UL60950-1, TUV EN60950-1 approved EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W) Connection Terminal block for input and output Dimension (LxWxH) 62.5x 51x 28 Case No. 971A Packing 108pcs /15.0kg SKU: RM004743 Category: SMPS Power Supply Warehouse Code: R00020-S05-P03-Z01
