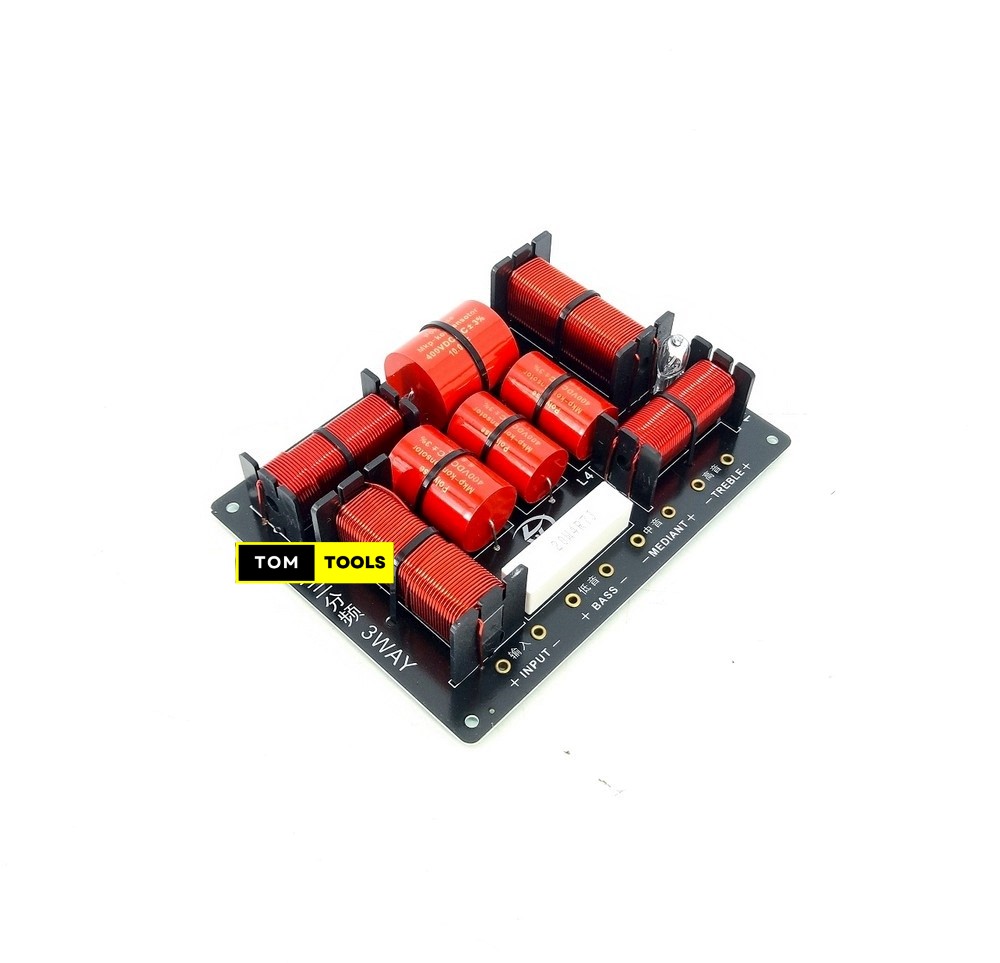

H883 3 Way Speaker Crossover Frequency Divider

– Circuit treble, midrange and bass are all designed with a second-order standard 12db/oct circuit. – The inductor is wound with oxygen-free copper wire: the bass coil uses 1.2mm wire diameter, the mid-range upper coil uses 1.1mm wire diameter, the middle lower limit coil uses 1.0mm wire diameter, and the high-pitched coil uses 1.0mm wire diameter – The capacitor uses a non-inductive MKP capacitor with a high withstand voltage of 400V, which better prevents the peak voltage from crossing and burning the speaker – Rated power:400W – Max Power: 800W – Impedance: 8 Ohms (Applicable to 4-8 ohm when using 4 ohm speakers) – Filter: 12 dB/oct – Frequency points: 1250HZ/5000HZ (bass frequency works below 1250HZ, midrange frequency works at 1250HZ-5000HZ, and treble frequency works above 5000HZ) – Size: 160*120*40mm
