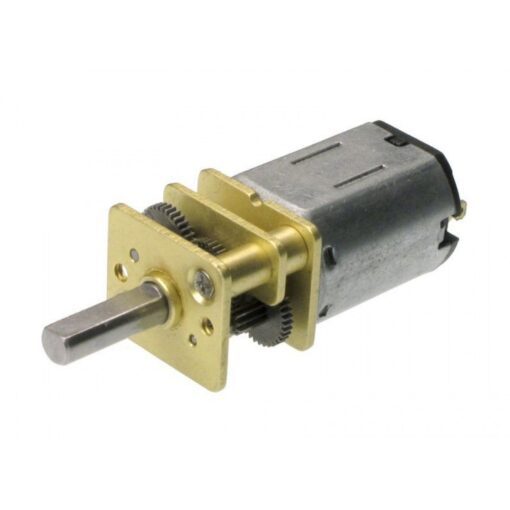

N20 12V 100RPM Micro Metal Gear DC Motor (High Torque)

The N20 12V 100RPM Micro Metal Gear DC Motor (High Torque) is lightweight, high torque, and low RPM motor. It is equipped with gearbox assembly so as to increase the torque of the motor. It has a cross-section of 10 x 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. It has a very small size so as fit in complex spaces of small-scale application. One can connect this Micro Gear Motor to wheels to drive them from one place to other while carrying high loads. This N20 12V 100RPM Micro Metal Gear Motor  (High Torque) has small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance. Features: Type: N20 Micro Gearbox This is a DC Mini Metal Gear Motor, ideal for making robots Lightweight, high torque and low RPM. Fine craftsmanship, durable, not easy to wear. With excellent stall characteristics, can climb hills easily. You can also easily mount a wheel on the motor’s output shaft. Specifications: Operating Voltage Range: 6 to 12V Rated Operating Voltage: 12V Rated RPM: 100 No load Speed: 300 RPM No Load Current: 0.06 A Stall Current: 0.75 A Rated Torque(kg-cm): 0.52 Stall Torque(Kg-Cm): 1.8 Motor Body Size (Diameter) (mm): 12 Shaft Diameter (mm): 3 Shaft Type: D-type Single Side Motor Type: Single Shaft Output Axial Length (mm): 10 Fuselage Dimesions: 15 x 12 x 10 (LxWxH) mm Screw Size: M3 Weight (gm): 10 Package Includes: 1 x N20 12V 100RPM Micro Metal Gear DC Motor (High Torque)
