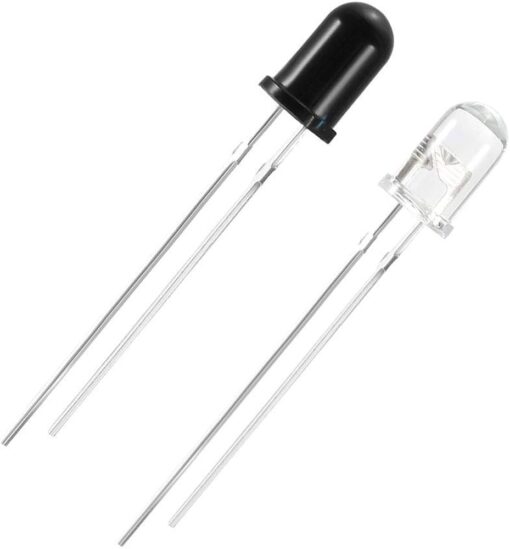

5mm IR LED Infrared Receiver and Transmitter Diode

The 5mm IR LED Infrared Receiver and Transmitter Diode is a Pair of Infrared LED and Photo diode tuned to same IR wavelength. You can use this sensors for your Robotics, Pulse Oximeter and other applications. 5mm IR LED Light Emitting Diode emits light in the infrared region, which is invisible to human eyes. This includes Infrared Receiver and Infrared Transmitter. These components are commonly used in robotics, pulse oximeters, and other applications where infrared communication or sensing is required. The IR LED emits light in the infrared region, which is invisible to human eyes, while the IR photodiode detects this light. Features: IR LED  Package type: leaded Dimensions : 5mm Leads with stand-off Peak wavelength: λp = 870 nm High reliability High radiant power High radiant intensity Angle of half intensity:  = ± 10° Low forward voltage Suitable for high pulse current operation High modulation bandwidth: fc = 24 MHz Good spectral matching with Si photodetectors IR Photodiode  Package type: leaded Dimensions : 5mm Leads with stand-off Radiant sensitive area (in mm2): 0.78 High radiant sensitivity Daylight blocking filter matched with 870 nm to 890 nm emitters High bandwidth: > 100 MHz at VR = 12 V Fast response times Angle of half sensitivity: ± 20° Package Includes: 1 x IR LED 1 x IR Photodiode
